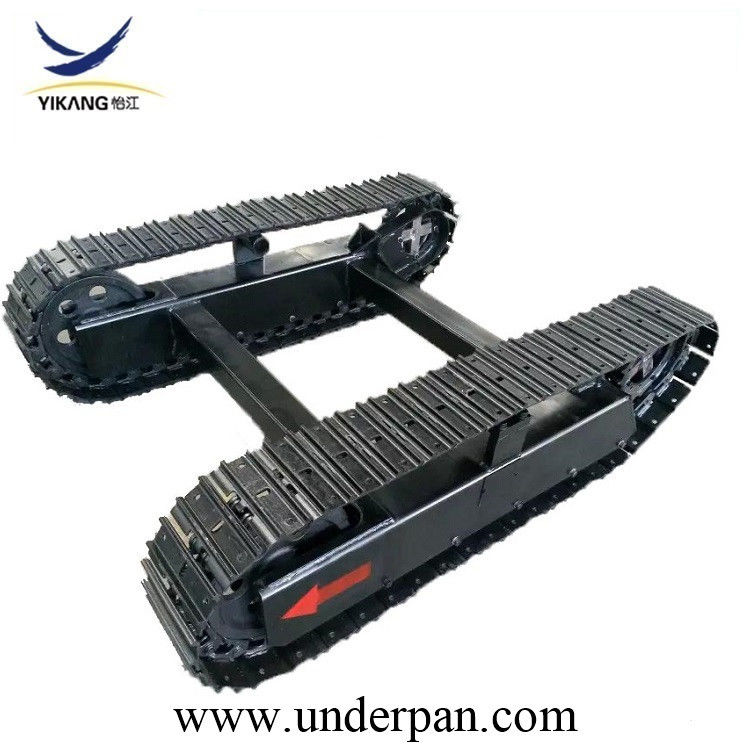

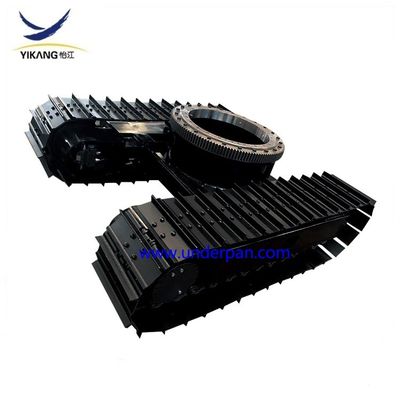

Custom hydraulic 5-10 ton crawler track undercarriage system for drilling rig equipment

Professional customized crawler track undercarriage manufacturer

Our undercarriage is composed of track roller,top roller,idler,sprocket,tension device rubber track or steel track etc, it is manufactured with the latest domestic technology, featuring compact structure, reliable performance, durability, convenient operation and low energy consumption. It is widely used in various drilling, mine machinery, fire-fighting robot, underwater dredging equipment ,aerial working platform, transport lifting equipment, agricultural machinery, garden machinery, special working machinery, field construction machinery, exploratory machinery, loader, static detection machinery, gadder , anchor machinery and other large, medium and small machinery.

Undercarriage is divided to steel track and rubber track undercarriage. Steel track undercarriage’s carrying capacity is 1 ton-150 ton, rubber track undercarriage’s carrying capacity is 0.2 ton-30 ton.

We not only can provide professional undercarriage selection and design service according to the customer's different equipment working requirements; but also can recommend to use the corresponding motor and drive equipment to facilitate customers to install at one time.

Undercarriage description

1. Complete with rubber track,steel track, track link,final drive,hydraulic motors rollers and crossbeam.

2. Loading capacity from 0.5 T to 150T.

3. We are professional to design the whole undercarriage according to customers' different requirements.

Application

Our track undercarriages are widely applied on the following machines

Drilling Class: anchor drilling rig, water well drilling rig, core drilling rig, jet drilling rig, down-hole
drilling rig, hydraulic crawler drilling rig, for poling rig, multipurpose drilling rig, no-dig drilling rig, etc.
Construction machinery class: mini excavator, mini pilling machine, aerial work platform, small transport loading equipment, etc.
Coal class: slag-raking machine, tunnel drilling rig, hydraulic drilling machine, rock loading machine, etc.
Mine class: mobile crusher, heading machine, conveying equipment, etc.

Other class: fire fighting robot, underwater dredging equipment, sugar cane harvester, etc.

Track undercarriage parameters

Track undercarriage aplplication scenarios

Our company has a complete design and production team, so we can design and manufacture a variety of crawler track undercarriage according to the different requirements of customers.

Track undercarriage packing

FAQ

Q1. If your company a trader or manufacturer for track undercarriage?

A : We are the manufacturer & trader for crawler track undercarriage..

Q2. Can you supply customize crawler track undercarriage?

A : Yes. We can customize track undercarriage according to your requirements.

Q3. How is your price about crawler track undercarriage?

A : We guarantee the quality while providing the right price for you.

Q4. How is your after – sale service about track undercarriage ?

A : We can give you one year after sales warranty, and any quality problem caused by manufacturing defects can be unconditionally maintained.

Q5. What is your MOQ about track undercarriage?

A : 1 set track undercarriage.

Q6. How will you place your order?

A : In order to recommend a suitable drawing and quotation to you , we need to know:

a. Rubber track or steel track undercarriage, and need the middle frame.

b. Machine weight and track undercarriage weight.

c. Loading capacity of the track undercarriage ( the weight of the whole machine excluding of track undercarriage.

d. Track undercarriage’s length, width and height

e. Track’s Width for track undercarriage.

f. Height about track undercarriage.

g. The max speed (KM/H) about track undercarriage.

h. Climbing slope angle.

i. The machine’s apply range , working environment.

j. Order quantity.

k. Port of destination.

l. Whether you require us to purchase or collocate relevant motor and gear box or not, or other special request.

Please contact us by email : manager@underpan.com
